custom vacuum tank trailersbuilt to order

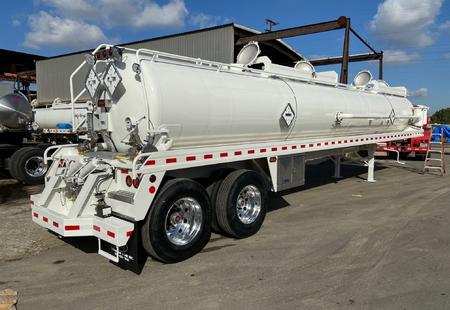

ST2-2700-2800-80000
Model Features
- two compartment - 2700 and 2800 gallons
- 80k gross
- ASME code
- DOT 407-412
- hydraulic driven Fruitland RCF-500
- on/off highway air ride suspension with manual scale and dump valve
- OSHA enclosed catwalk assembly
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
- ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
- full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
- two 20” washout assemblies, per compartment and one (1) 20” dome assembly per compartment are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off (per compartment) & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available) per compartment
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling, per compartment
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators, per compartment
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

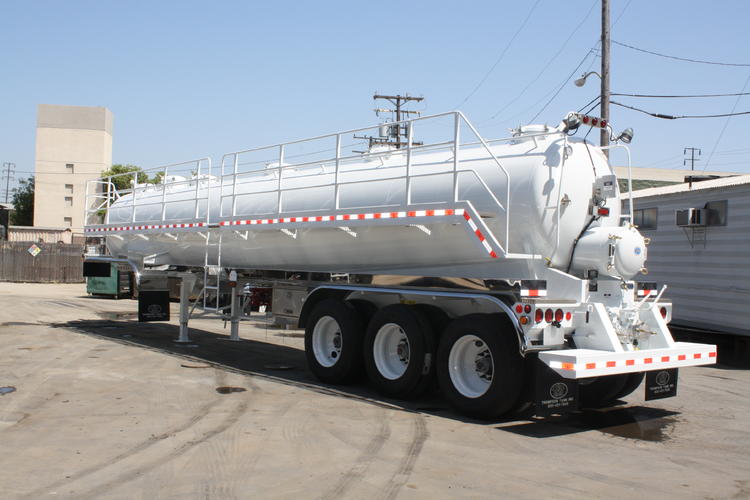

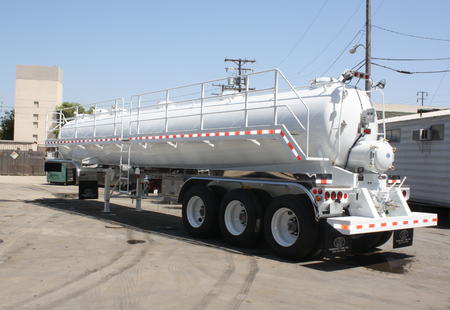

WTN-DC-7000-96000
Model Features
- 7000 gallon capacity
- 96k gross
- double conical design with 10" minimum slope to center
- non code
- self-contained with tier 4i air-cooled Deutz diesel package
- HD tri-axle spring suspension
- OSHA enclosed catwalk assemblies with center access ladder
- rear cleanout
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- 35 psi internal and full vacuum
- 1/4" thick tank shell for long lasting reliability
- pump platform
- four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

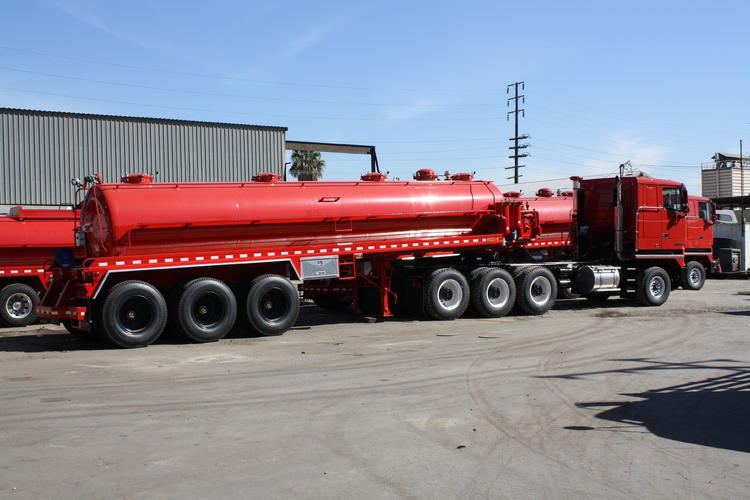

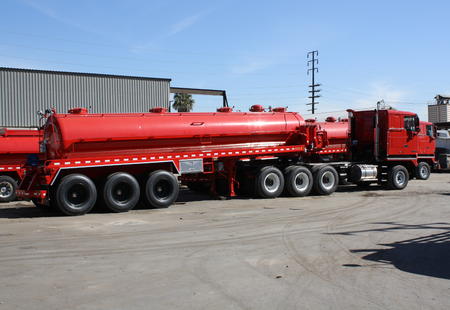

stn-120-170000
Model Features
- 120 bbl capacity
- 170k gross design for 22 lbs. per gallon product
- non code
- HD tri-axle 75k spring suspension
- dual standard catwalks
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- 35 psi internal and full vacuum
- 1/4" thick tank shell for long lasting reliability
- pump platform
- four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system
