Tank TrucksST-600

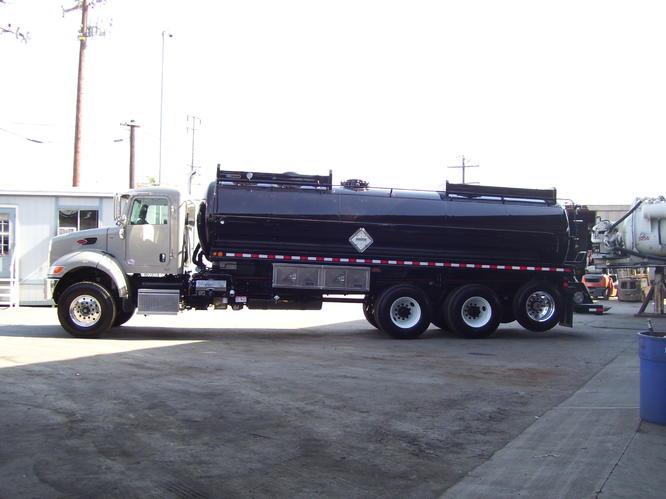

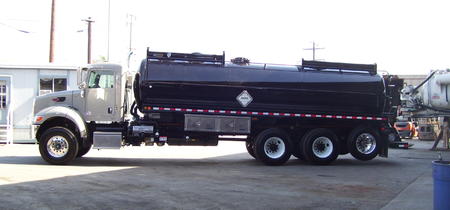

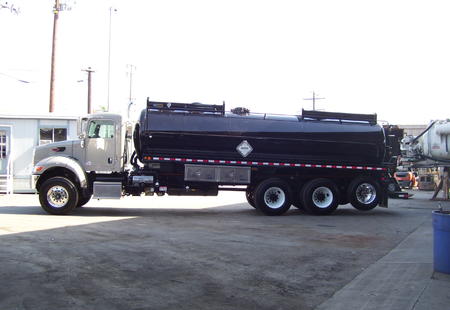

ST-4000-64000ST-600
ST-4000-64000

st-4000-64000

Model Features

  • 4000 gallons
  • 64k gross
  • ASME code
  • DOT 407-412
  • dual standard catwalks
  • 316 ss clad tank bottom
  • PTO driven TTI-VC-454 vacuum pump
  • PTO driven 3" Roper gear pump

Standard Features

  • 90-100 bbl., 64,000 lbs gross design (custom capacities & weight ratings available)
  • Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
  • ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
  • minimum of 8” slope from front to rear for complete drainage and elimination of excess bottom corrosion
  • full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
  • PTO driven pump packages & hydraulic pump packages are available
  • two (2) 20” washout assemblies, per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
  • thompson patented air system, including primary cantilever shut-off & secondary vertical shutoff valves, optional air scrubber & bleeder assembly (vacuum or pressure manual regulator) with rear end controls
  • thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
  • 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
  • clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
  • catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
  • two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
  • all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

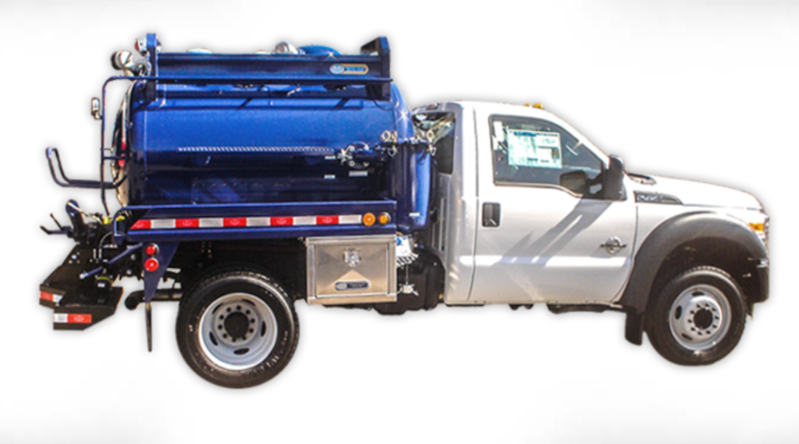

ST-600

ST-600

Model Features

  • 600 gallon capacity
  • hydraulic driven NVE-607 challenger with closed loop cooler
  • ASME code
  • Dot 407-412

Standard Features

  • custom capacity and weight ratings available
    • Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
    • ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
    • minimum of 8” slope from front to rear for complete drainage and elimination of excess bottom corrosion
    • full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
    • PTO driven pump packages & hydraulic pump packages are available
    • two (2) 20” washout assemblies, per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
    • thompson patented air system, including primary cantilever shut-off & secondary vertical shutoff valves, optional air scrubber & bleeder assembly (vacuum or pressure manual regulator) with rear end controls
    • thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
    • 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
    • clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
    • catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
    • two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
    • all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system
