vacuum tank trailersnon-code non-spec

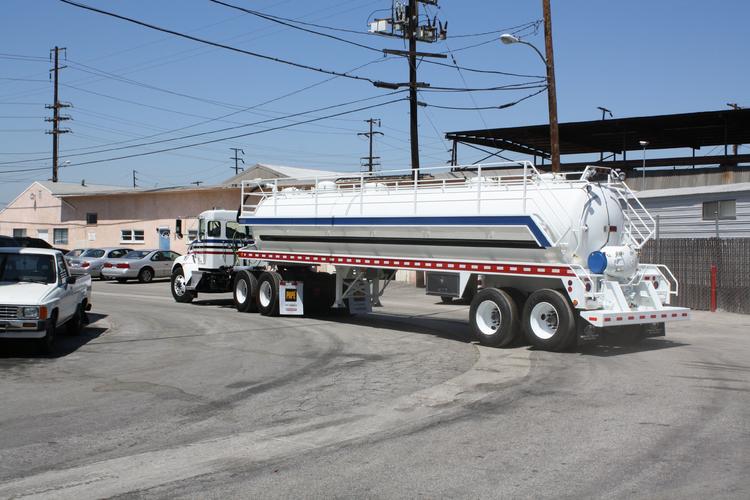

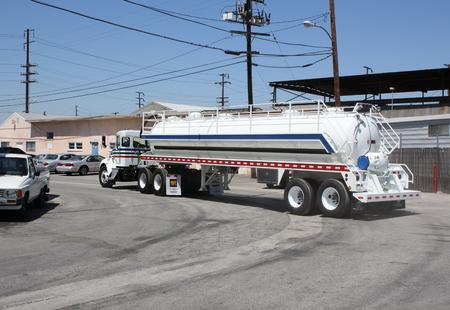

STN-120-80000
STN-120-80000

STN-120-80000

Model Features

  • 120 bbl capacity
  • 80k gross
  • non code
  • rear cleanout
  • HD spring suspension
  • dual standard catwalks
  • multi-color finish

Standard Features

  • 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
  • 35 psi internal and full vacuum
  • 1/4" thick tank shell for long lasting reliability
  • four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
  • Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
  • 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
  • Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
  • 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
  • Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
  • catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
  • two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
  • all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system
