Vacuum Tank TrailersASME Code DOT certified

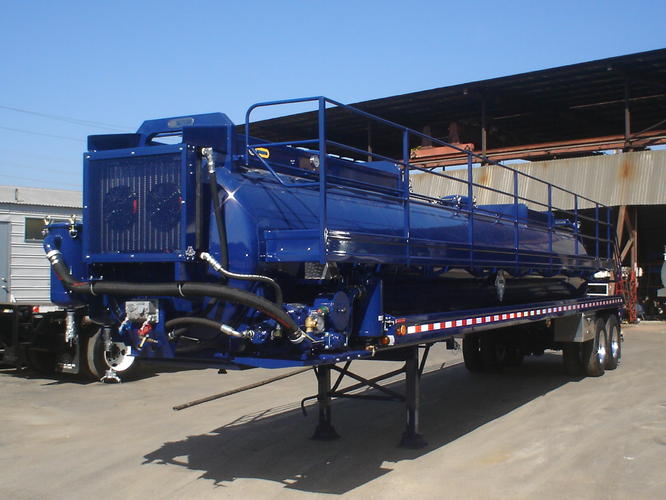

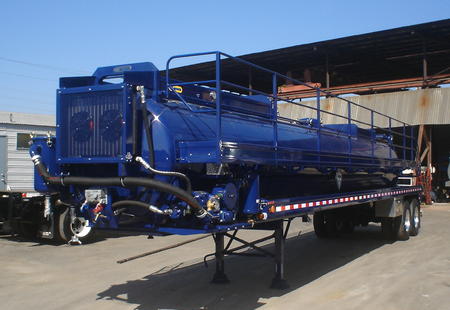

st-120-80000
Model Features
- 120 bbl capacity
- 80k gross
- ASME code
- DOT 407-412
- hydraulic driven Fruitland RCF-500
- HD spring suspension
- OSHA enclosed catwalk assembly
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
- ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
- full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
- four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

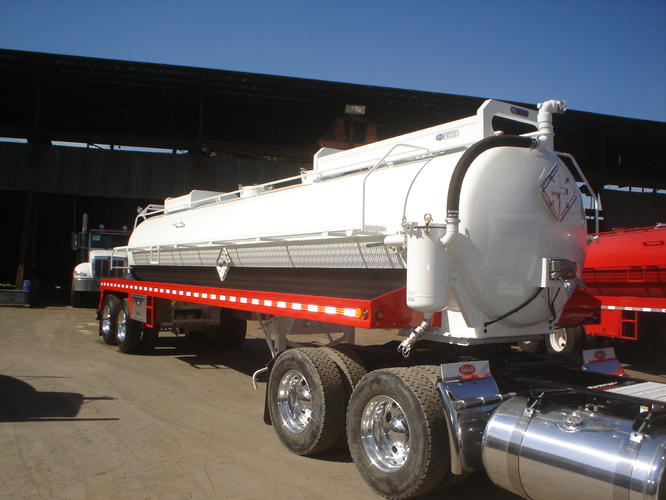

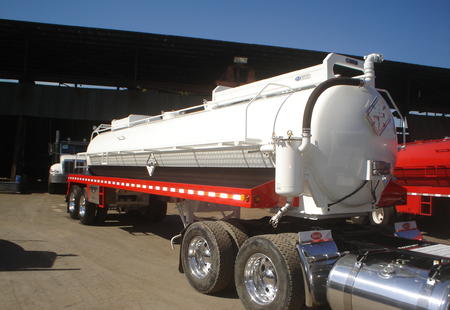

st-120-80000
Model Features
- 120 bbl capacity
- 80k gross
- ASME code
- DOT 407-412
- HD spring suspension
- OSHA enclosed catwalk assembly
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
- ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
- full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
- four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

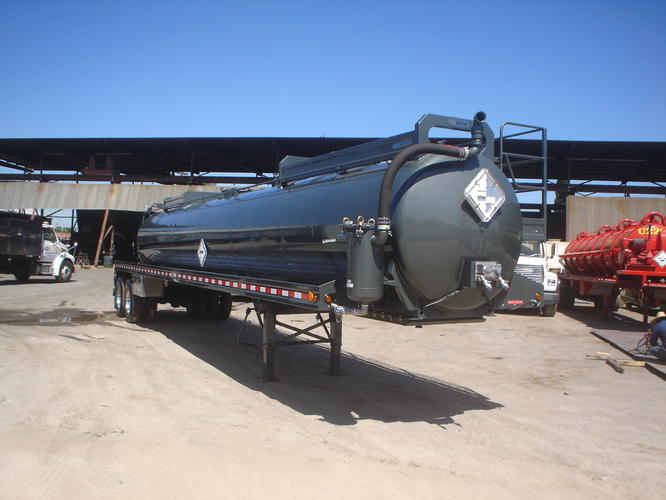

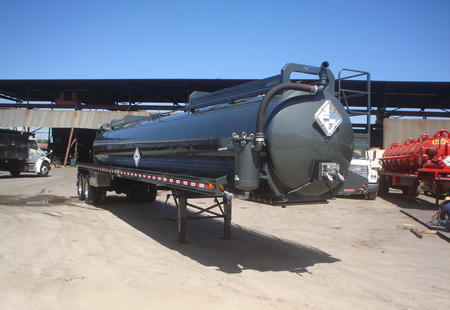

st-120-80000
Model Features
- 120 bbl capacity
- 80k gross
- ASME code
- DOT 407-412
- HD spring suspension
- OSHA enclosed catwalk assembly
- spray bed-liner
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
- ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
- full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
- four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

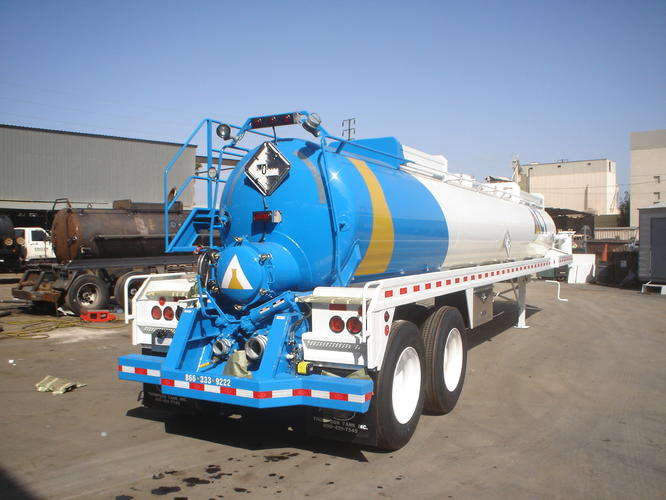

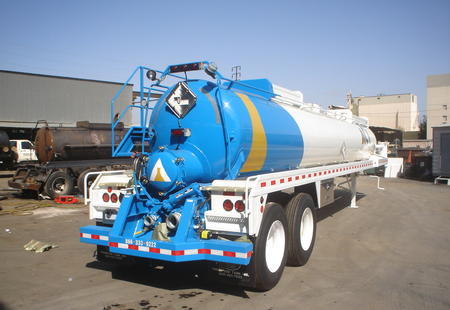

st-120-80000
Model Features
- 120 bbl capacity
- 80k gross
- ASME code
- DOT 407-412
- hydraulic driven Fruitland RCF-500
- HD spring suspension
- OSHA enclosed catwalk assembly
Standard Features
- 120-130 bbl., 80,000 lbs gross design (custom capacities & weight ratings available)
- Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
- ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
- full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
- four 20” washout assemblies, one per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- Thompson patented air system, including primary cantilever primary shut-off & secondary vertical shutoff valves, optional air scrubber
- 2" full port dedicated bleeder (vacuum or pressure manual regulator) with rear end controls
- Thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- Clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system
