Vacuum Tank Trucksasme code and dot certified

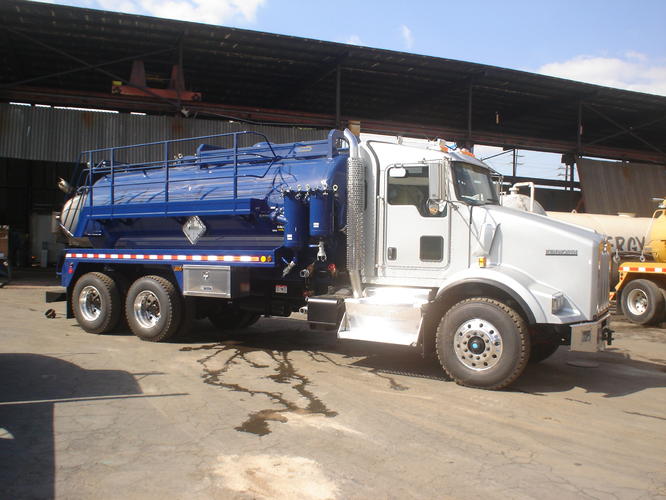

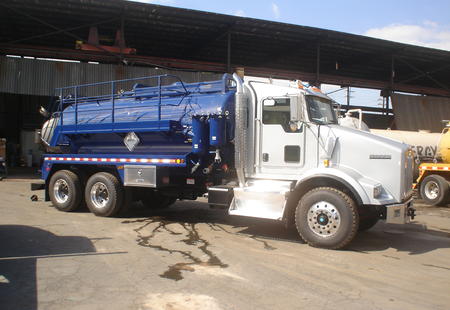

ST-3000-50000 ST-3000-50000
ST-3000-50000

ST-3000-50000

Model Features

  • 70 bbl
  • 50k gross
  • ASME code
  • DOT 407-412
  • OSHA enclosed catwalk with side access
  • rear cleanout
  • 316 ss clad tank bottom
  • PTO driven NVE-887 challenger pump
  • PTO driven 3" Roper gear pump

Standard Features

  • 70-80 bbl., 50,000 lbs gross design (custom capacities & weight ratings available)
  • Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
  • ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
  • minimum of 8” slope from front to rear for complete drainage and elimination of excess bottom corrosion
  • full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
  • PTO driven pump packages & hydraulic pump packages are available
  • two (2) 20” washout assemblies, per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
  • thompson patented air system, including primary cantilever shut-off & secondary vertical shutoff valves, optional air scrubber & bleeder assembly (vacuum or pressure manual regulator) with rear end controls
  • thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
  • 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
  • clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
  • catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
  • two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
  • all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

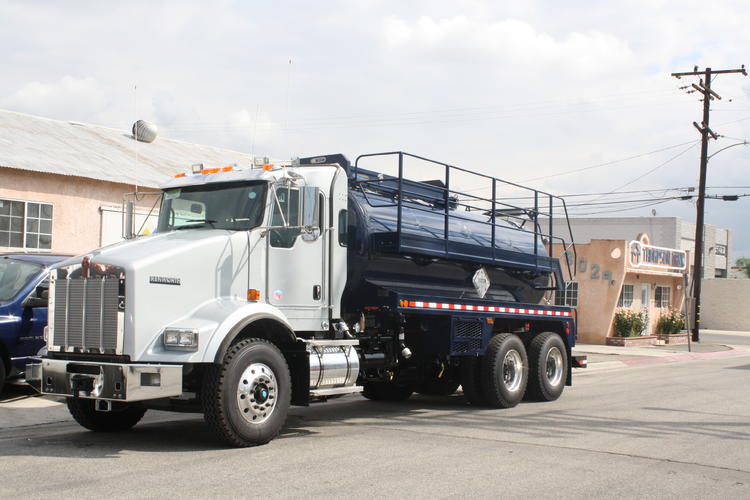

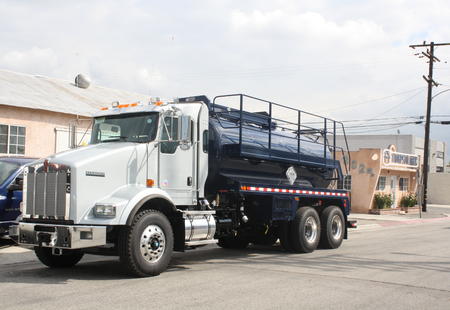

ST-3000-50000-001

ST-3000-50000

Model Features

  • 70 bbl
  • 50k gross
  • ASME code
  • DOT 407-412
  • OSHA enclosed catwalk with side access
  • 316 ss clad tank bottom
  • PTO driven Fruitland RCF-500 pump
  • PTO driven 3" Roper gear pump

Standard Features

  • 70-80 bbl., 50,000 lbs gross design (custom capacities & weight ratings available)
  • Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
  • ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
  • minimum of 8” slope from front to rear for complete drainage and elimination of excess bottom corrosion
  • full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
  • PTO driven pump packages & hydraulic pump packages are available
  • two (2) 20” washout assemblies, per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
  • thompson patented air system, including primary cantilever shut-off & secondary vertical shutoff valves, optional air scrubber & bleeder assembly (vacuum or pressure manual regulator) with rear end controls
  • thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
  • 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
  • clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
  • catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
  • two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
  • all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system

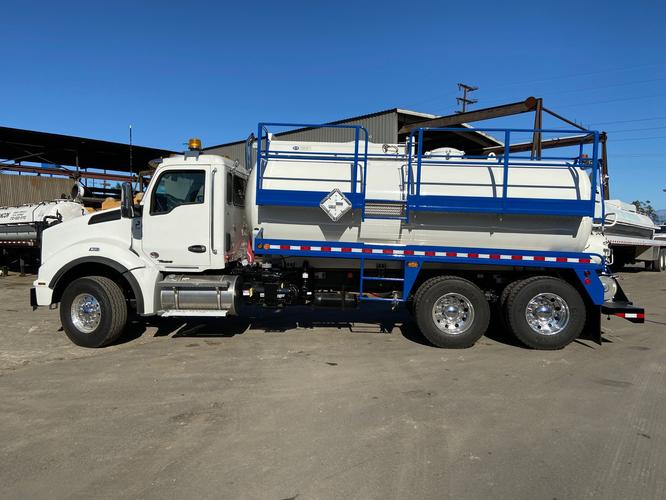

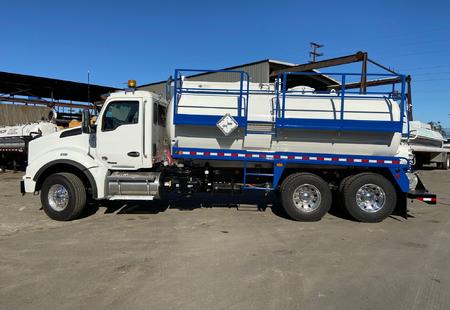

ST-3000-50000

st-3000-50000

Model Features

  • 70 bbl
  • 50k gross
  • ASME code
  • DOT 407-412
  • OSHA enclosed catwalk with side access
  • 316 ss clad tank bottom
  • PTO driven NVE-887 challenger pump
  • PTO driven 3" Roper gear pump

Standard Features

  • 70-80 bbl., 50,000 lbs gross design (custom capacities & weight ratings available)
  • Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
  • ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
  • minimum of 8” slope from front to rear for complete drainage and elimination of excess bottom corrosion
  • full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
  • PTO driven pump packages & hydraulic pump packages are available
  • two (2) 20” washout assemblies, per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
  • thompson patented air system, including primary cantilever shut-off & secondary vertical shutoff valves, optional air scrubber & bleeder assembly (vacuum or pressure manual regulator) with rear end controls
  • thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
  • 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
  • clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
  • catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
  • two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
  • all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system
Phone: (562) 869-7711
